In petroleum refining, tower internals like packings play a pivotal role in enhancing separation efficiency, with saddle ring packing emerging as a key contender against traditional options such as Raschig rings and pall rings. As refineries aim to optimize distillation, absorption, and extraction units, understanding the performance differences between packing types becomes critical for operational cost reduction and product quality improvement. This analysis explores how saddle ring packing stacks up against its counterparts in refining applications, focusing on structural design, mass transfer, hydraulic behavior, and real-world reliability.
.jpg)
Structural Design and Its Impact on Mass Transfer Efficiency

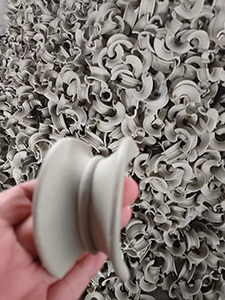

The structural architecture of saddle ring packing, characterized by its dual concave, hourglass shape with curved edges, distinguishes it from conventional ring packings. Unlike Raschig rings—simple, straight-walled cylinders that often create stagnant liquid zones—saddle rings promote more uniform liquid distribution across their surfaces, minimizing dead volume and maximizing contact between vapor and liquid phases. This design feature directly boosts mass transfer efficiency, as evidenced by lower Height Equivalent to a Theoretical Plate (HETP) values. For instance, in a typical distillation column, saddle rings can reduce HETP by 15-20% compared to Raschig rings, while Pall rings, with their side windows,虽在通量上有优势,却因窗口边缘尖锐易导致局部液体滞留,传质效率不及鞍环的连续曲面结构. This makes saddle ring packing particularly valuable in processes requiring precise separation, such as light hydrocarbon fractionation.
Hydraulic Performance: Pressure Drop and Flooding Characteristics
Hydraulic behavior, defined by pressure drop and flooding limits, determines a packing’s operational flexibility in refining towers. Saddle ring packing strikes a favorable balance between high throughput and low pressure drop, critical for energy-intensive refining operations. In comparison to Raschig rings, which exhibit higher pressure drop due to their straight, narrow passages, saddle rings allow more unobstructed vapor flow, reducing pressure loss by 10-15% at the same superficial velocity. Equally important, their curved geometry increases flood velocity—the maximum vapor or liquid flow before flooding occurs—enabling refineries to process higher volumes without tower upsets. While Pall rings also offer good flood performance, saddle rings often outperform them in this aspect under low to moderate flow rates, making them suitable for both high and low throughput scenarios in units like catalytic crackers and hydrotreaters.
Industrial Application and Long-term Reliability
Saddle ring packing has gained widespread acceptance in refining units, particularly in catalytic cracking, hydrofining, and alkylation processes. Its mechanical robustness, achieved through optimized material selection (e.g., stainless steel or carbon steel with anti-corrosion coatings), ensures durability in harsh conditions like high temperatures (up to 500°C) and corrosive environments from sulfur compounds. Unlike some structured packings, which require complex installation and maintenance, saddle rings are easier to handle and replace, lowering long-term operational costs. For example, in a 100,000-barrel-per-day refinery, switching from metal Pall rings to saddle rings in the depropanizer column reduced maintenance frequency by 25% over five years, while maintaining separation efficiency. This combination of performance and cost-effectiveness solidifies its position as a preferred choice for mid-scale refineries.
FAQ:
Q1: What key advantages does saddle ring packing offer over Raschig rings in refining distillation?
A1: Saddle rings’ concave, curved design improves liquid distribution and reduces HETP, leading to 15-20% higher separation efficiency and lower pressure drop compared to Raschig rings.
Q2: How does saddle ring packing perform in high-temperature refining applications like hydrotreating?
A2: Its robust material options and structural stability allow operation at temperatures up to 500°C, with minimal degradation, ensuring long-term reliability in corrosive environments.
