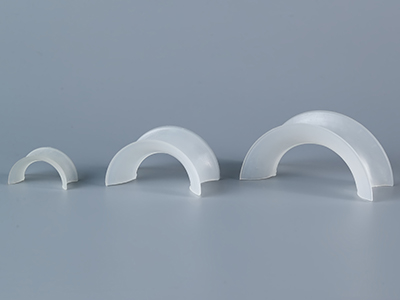

saddle ring packing, a widely used internals in chemical processing columns, towers, and reactors, relies on precise installation to deliver its intended benefits of enhanced mass transfer and efficient fluid distribution. When improperly installed, it can lead to severe operational issues, including channeling—where fluid bypasses sections of the packing, creating uneven flow patterns and reducing overall column performance. This article explores essential installation considerations to avoid channeling and ensure uniform flow, critical for maintaining process efficiency and equipment longevity.
.jpg)
Proper Base Preparation: Establishing a Stable Foundation
The first step in saddle ring packing installation is preparing the column base, as an unstable foundation directly contributes to channeling. The support grid or bed plate, which sits at the bottom of the column, must be perfectly level to ensure uniform packing distribution. Even minor inclines can cause packing to settle unevenly, creating "hot spots" where fluid flows preferentially. Additionally, the base must be thoroughly cleaned to remove debris, rust, or leftover material from previous internals, as foreign particles can block flow paths and disrupt the packing structure. Using precision tools like levelers and cleaning brushes ensures the base is ready to support the packing layer consistently.
Strategic Stacking Patterns: Minimizing Void Spaces
The way saddle ring packing is stacked significantly impacts flow uniformity. Channeling often arises from uneven packing density, where some areas have excessive voids and others are overly compacted. To prevent this, installers should adopt a "layered, staggered" stacking method. This involves placing each layer of rings at a 90-degree angle to the layer below, creating a more interconnected structure that resists preferential flow. Additionally, maintaining consistent ring height across the column diameter is critical—localized high or low packing layers can cause fluid to "shortcut" through the taller sections, bypassing the packing. Using height guides or markers during installation helps ensure uniform packing depth, even in large-diameter columns.
Post-Installation Inspection: Verifying Flow Integrity
After packing installation, thorough inspection is necessary to confirm that the packing layer is free of channeling and that flow distribution meets design specifications. One effective method is a "cold flow test," where a tracer fluid (e.g., a colored solution or inert gas) is introduced at the column inlet, and samples are collected at the outlet. Uneven tracer distribution indicates channeling, while uniform spread confirms proper flow. Pressure drop testing is another key step: excessive pressure drop across the packing may signal blockages or uneven packing density, while abnormally low pressure drop could indicate voids or maldistribution. Adjustments, such as adding additional packing in under-filled sections or realigning misaligned rings, should be made immediately upon identifying such issues.
FAQ:
Q1: What are the primary signs of channeling in saddle ring packing?
A1: Common signs include uneven temperature or composition in outlet streams, fluctuations in pressure drop, and localized dry spots in the packing bed (evident through visual inspection after shutdown).
Q2: How does packing size affect installation considerations for avoiding channeling?
A2: Smaller saddle rings require more precise stacking to maintain uniformity, while larger rings may need additional support to prevent settling gaps. Always follow manufacturer guidelines for size-specific installation techniques.
Q3: Can existing packing be reused if minor channeling is detected during inspection?
A3: Minor issues like loose rings or small gaps can sometimes be resolved by repacking the affected section. However, significant channeling or damage typically requires full replacement to restore uniform flow.
