saddle ring packing has become an indispensable component in chemical processing, offering efficient mass transfer and separation capabilities across a spectrum of industrial sectors. Distinguished by their curved, hourglass design, these packings enhance fluid distribution and gas-liquid contact, outperforming traditional options in terms of contact area and flow dynamics. The choice of material—ceramic, metal, or plastic—directly impacts performance, durability, and compatibility with specific process conditions. This comprehensive guide explores each material category, their unique attributes, and how they align with diverse industrial requirements.
.jpg)
Ceramic Saddle Rings: Unwavering Chemical and Thermal Stability
Ceramic saddle rings stand out for their exceptional chemical inertness and high-temperature resilience, making them the go-to choice for harsh industrial environments. Crafted from alumina, silica, or specialized refractory materials, these packings exhibit zero reactivity with acids, alkalis, and organic solvents, ensuring long-term structural integrity even in extreme conditions like high-temperature distillation or corrosive gas treatment. Their porous, curved surface promotes uniform liquid hold-up and gas flow, minimizing channeling and dead spaces that could reduce separation efficiency. A notable limitation, however, is their brittleness, requiring careful handling during installation to prevent breakage. Ideal applications include petrochemical catalytic reactors, acid gas scrubbing systems, and high-temperature chemical synthesis processes where material stability is non-negotiable.

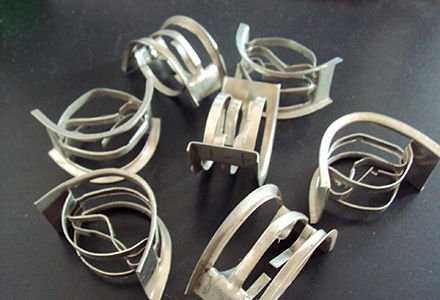

Metal Saddle Packings: Strength and Versatility in One
Metal saddle rings combine robust mechanical properties with chemical resistance, offering a versatile solution for a broad range of industrial processes. Available in materials such as stainless steel (304, 316), carbon steel, and titanium, these packings withstand high pressure differentials and thermal cycling, making them suitable for dynamic operating conditions. Their high thermal conductivity facilitates efficient heat dissipation, critical in exothermic reactions, while their smooth surface resists fouling and corrosion in moderate chemical environments. Unlike ceramics, metal options are less prone to breakage, simplifying maintenance and reducing downtime. They excel in oil refining, solvent recovery, and wastewater treatment, where durability and performance under varying process parameters—including fluctuating temperatures and pressures—are paramount.
Plastic Saddle Ring Options: Cost-Effective Efficiency for Moderate Conditions
Plastic saddle rings, typically made from polypropylene (PP), polyethylene (PE), or PTFE, provide a cost-effective, lightweight alternative for non-corrosive or low-pressure applications. These materials are inherently resistant to most acids, bases, and organic solvents, making them ideal for food processing, pharmaceutical manufacturing, and water treatment. Their low weight reduces structural loads on columns and simplifies installation, while their chemical resistance eliminates concerns about material degradation. However, they have limitations in high-temperature scenarios, with melting points varying by grade. Plastic saddle rings deliver comparable separation efficiency to more expensive materials at a fraction of the cost, making them the preferred choice for processes involving mild chemicals, low to moderate temperatures, and budget constraints.
FAQ:
Q1: What key factors influence the selection of saddle ring packing material?
A1: Critical factors include process temperature, chemical compatibility, pressure, and cost. Ceramic or metal works for high-temperature/corrosive environments, while plastic suits low-pressure, non-corrosive needs.
Q2: How do different materials compare in terms of separation efficiency?
A2: Ceramic and metal saddle rings often offer higher efficiency due to superior surface area utilization, while plastic options provide comparable results at lower costs for less demanding processes.
Q3: Can saddle ring packing be adapted to existing industrial equipment?
A3: Yes, their standardized sizing and compatibility with standard column designs make them suitable for retrofitting, upgrades, or maintenance in existing processing systems.
