陶瓷规整填料

陶瓷规整填料是一种新型规整填料，陶瓷规整填料是由许多具有相同几何形状的填料单元体组成。由于陶瓷规整填料独特的结构，具有良好的亲水性能，其表面可形成极薄的液膜的湍动及气流的倾斜曲折通道能促进气流但又不阻挡气流使陶瓷填料能与金属填料相匹敌，而规整填料耐腐蚀、耐高温性能金属填料却无法相比。表面结构有良好的湿润性能，能使液体加快流动、使填料滞液量降至最低。从而降低了过热、聚合和结焦的机会。...
产品询盘
产品详情

　　陶瓷波纹规整填料的比表面积高，在提高产值、降低能耗、提高功率等方面具有非常大的优势。同时，因为填料能够有序放置，所以材料中所含的固体颗粒可通过填料的波纹底部排出，因此其防堵性能优异。

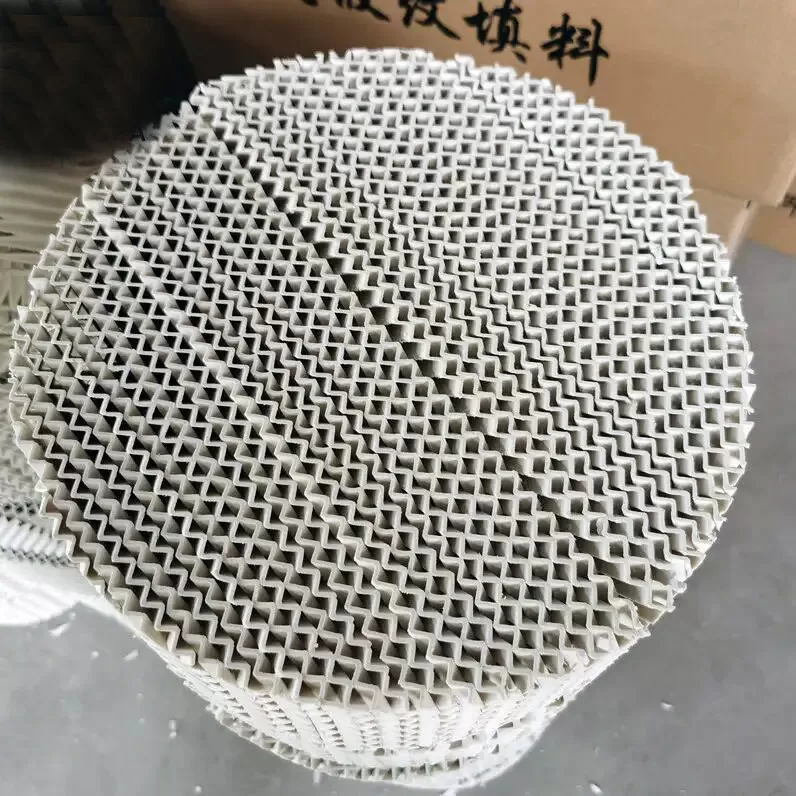

陶瓷规整132 (5)_proc.jpg

　　制备陶瓷波纹填料的主要材料是硅酸铝耐酸、耐化学腐蚀的陶瓷材料，这种陶瓷材料非常结实，耐温性高达1300℃，使用温度低至-1000℃，除氢氟酸外，还可抵抗所有无机酸、有机酸、酸性气体和中性气体，有助于延长填料的使用寿命。



参数表


型号 比表面积
(m2/m3)		 堆积密度
  (kg/ m3)		 空隙率(%) 倾斜角 压力降 理论板数
(m-1)		 水力直径
(mm)		 液体负荷
(m3/m2h)		 F因子
(Kg/m3)-1
 (mmHg/m)
 125Y 125 320 90 45° 1.8 1.8 28 0.2-100 3
 160Y 160 370 85 45° 2 2 15 0.2-100 2.8
 250Y 250 420 80 45° 2 2.5 12 0.2-100 2.6
 350Y 350 470 78 45° 2.5 2.8 10 0.2-100 2.5
 400Y 400 500 75 45° 3 3 8 0.2-100 2
 450Y 450 520 72 45° 4 4 7 0.2-100 1.8
 550Y 550 620 74 45° 5.5 5-6 6 0.18-100 1.4
 700Y 700 650 72 45° 6 7 5 0.15-100 1.3
 100X 100 280 92 30° 1.5 1 30 0.2-100 3.5
 125X 125 300 90 30° 1.8 1.5 28 0.2-100 3.2
 160X 160 350 85 30° 2 1.8 15 0.2-100 3
 250X 250 380 80 30° 2.5 2.3 12 0.2-100 2.8
 350X 350 450 78 30° 3 2.5 10 0.2-100 2.6
 400X 400 480 75 30° 4 2.8 8 0.2-100 2.2
 450X 450 500 72 30° 4.5 3-4 7 0.2-100 2
 470X 470 440 75 30° 5 5 7 0.2-100 1.8
 550X 550 620 74 30° 5.5 5-6 6 0.18-100 1.4
 700X 700 650 72 30° 6 7 5 0.15-100 1.3
 典型应用 可用于化工、冶金、煤气、制氧等行业的干燥塔、吸收塔、冷却塔、洗涤塔、再生塔等
 包装 纸箱、木箱
 最小起订量 1m³
 质保方式 1)执行标准：GB/T 18749-2002
 2)使用期内提供技术咨询指导
 集装箱 20GP 40GP 订购
 数量 15m³ 30m³ < 5m³
 交货期 3天 5天 库存


产品询盘
