金属孔板波纹规整填料

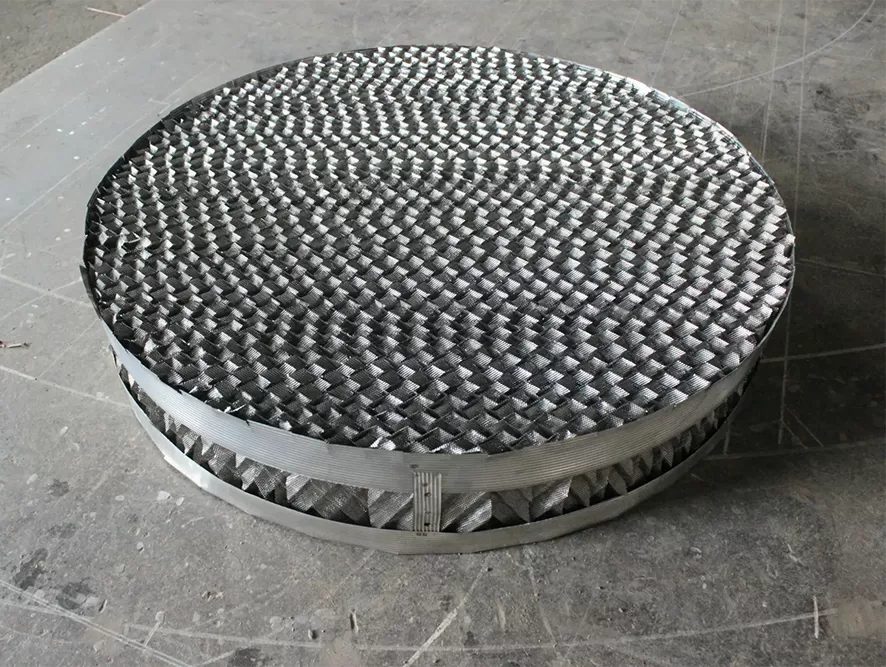

金属不锈钢孔板波纹规整填料

金属规整填料是通过对金属薄板表面冲孔、轧制小波纹和大波纹后组装而成的工业填料，具有阻力小、气液分布均匀、通量大、效率高、抗堵能力强、耐热、耐腐蚀、分离效果好等特点。根据波纹形态和加工工艺差异分为丝网波纹填料、不锈钢孔板波纹填料、刺孔板波纹填料等类型，其中孔板波纹填料在负压、常压和加压操作环境下表现出良好的分离性能，广泛应用于石油、化工、医药等领域的精密分离。...

产品询盘

1 (21).jpg

以下是金属孔板波纹规整填料性能参数一览表，以供参考：

型号	比表面积（㎡/m³）	峰高（mm）	空隙率（%）	理论板数（I/m）	压力降（Mpa/m）	F 因子（m/s (kg/m³)^0.5）	板厚（mm）	开孔直径（mm）	开孔率（%）
125Y	125	24	98.8	1 - 1.2	1.5×10⁻⁴	2.8	0.18	-	-
150Y	150	20	98.3	1.5 - 2	1.5×10⁻⁴	2.7	0.18	-	-
200Y	200	18	98	2	1.5 - 2×10⁻⁴	2.6	0.18	4.5	8-10
250Y	250	12	97.5	2-3	1.5 - 2×10⁻⁴	2	0.14 - 0.16	4.5	8.5 - 9.5
350Y	350	8	95	3.5 - 4	1.5×10⁻⁴	1.5	-	-	-
450Y	450	6.5	93	4 - 4.5	1.8×10⁻⁴	-	-	-	-
