Plastic Taylor Ring Garland Ring Rosette Ring Packing

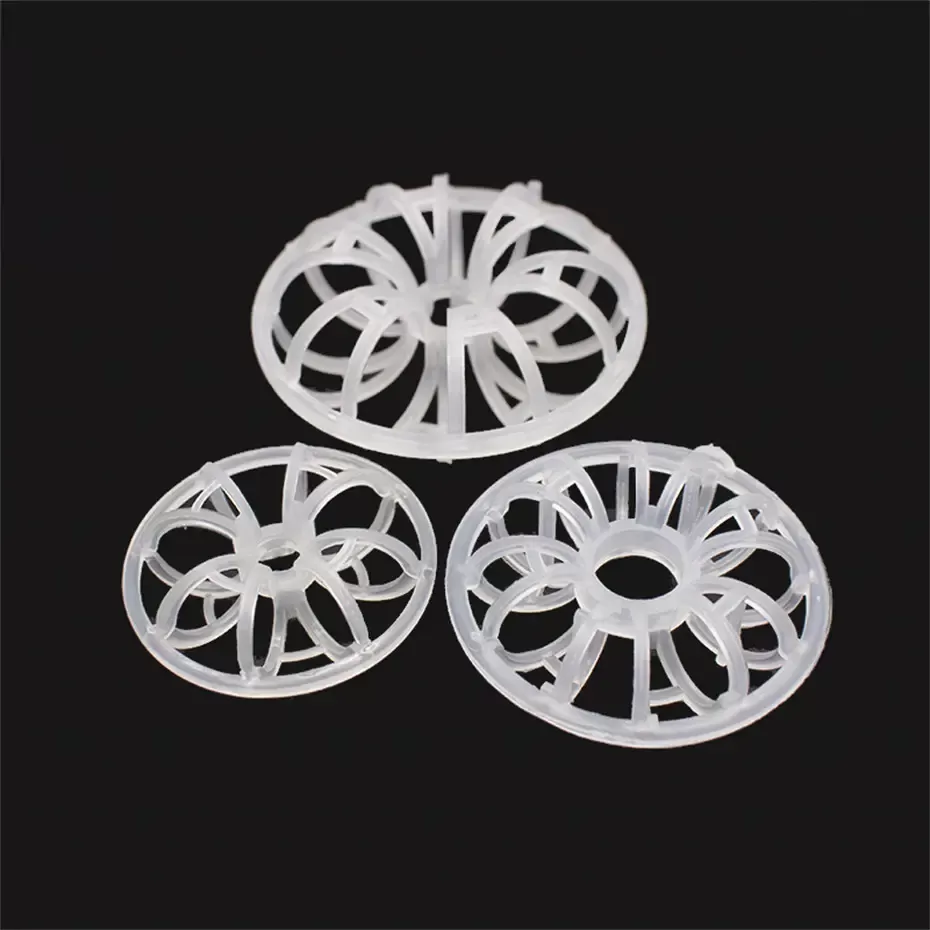

Plastic Taylor Ring, a high-performance random packing, is crafted from PP, PVC, or PE, combining durability and chemical resistance. Developed by A.J. Teller, its structure features 12 radial small rings forming a garland-like flat ring.This design ensures high voidage, minimizing pressure drop while maximizing flux for efficient gas-liquid contact. The interlaced structure enhances mass transfer by increasing contact area and turbulence. Lightweight and easy to install....

Product Inquiry

Introduction to Plastic Taylor Ring

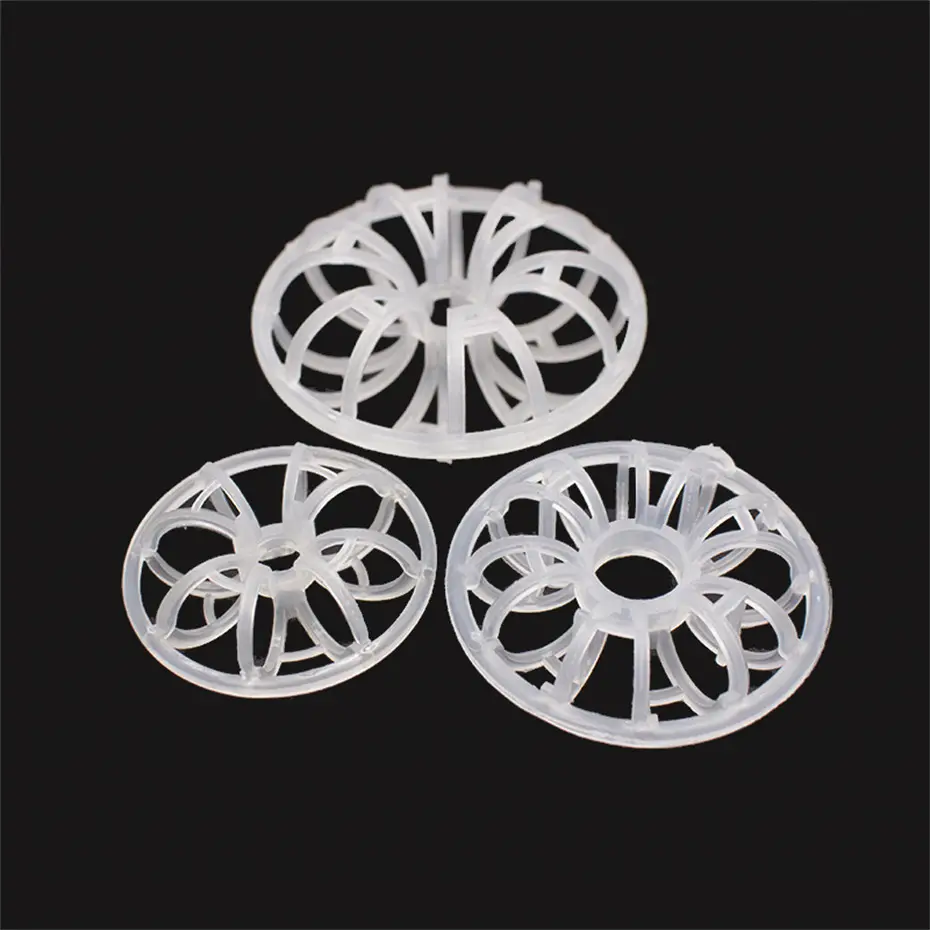

Plastic Taylor Ring is an efficient random packing made from plastic materials such as PP, PVC, or PE. It boasts excellent chemical stability and corrosion resistance, making it suitable for various industrial environments involving acid, alkali, or organic solvents. Its structure is characterized by 12 small rings arranged radially, interwoven to form a flat, garland-shaped large ring, which enhances gas-liquid contact area and turbulence, thereby improving mass transfer efficiency.

With high voidage, it reduces pressure drop and increases flux, performing well in absorption, distillation, and wastewater treatment processes. Lightweight and easy to install, it balances performance and cost effectively, widely used in chemical, pharmaceutical, and environmental protection industries.

泰勒花环 (1).png

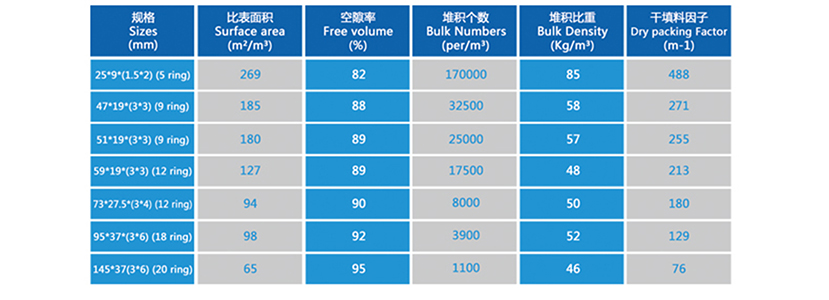

Specification Parameter Table of Plastic Taylor Ring

Parameter Item
Typical Range
Material
PP, PVC, PE
Outer Diameter
25mm - 100mm
Height
15mm - 80mm
Wall Thickness
0.8mm - 2.5mm
Voidage
75% - 90%
Bulk Density
40kg/m³ - 120kg/m³
Pressure Drop
≤200Pa/m (under operating conditions)
Temperature Resistance
-10℃ - 120℃ (PP); -5℃ - 60℃ (PVC)
Chemical Compatibility
Resistant to most acids, alkalis, organic solvents (varies by material)
Packing Factor
100 - 300 m⁻¹
