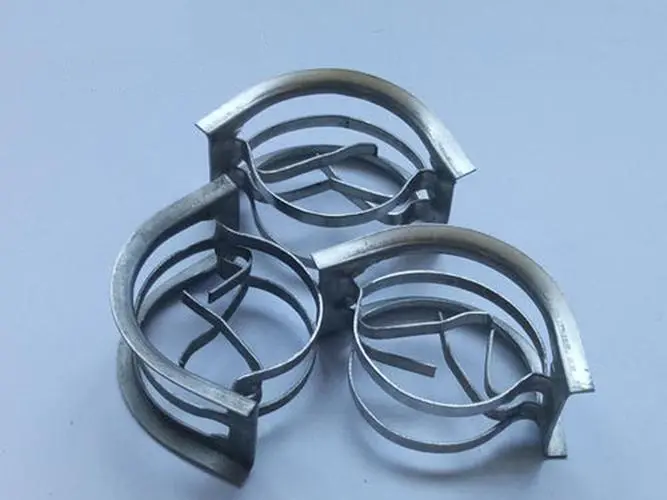

Packings are critical tower internals for enhancing mass transfer and separation efficiency in distillation and absorption columns. Among various types, saddle rings, including arc saddle ring and Intalox saddle ring, have gained popularity due to their unique geometries. This article focuses on their shape factors, key geometric parameters, and performance implications. Arc Saddle Ring: Its shape is defined by a curved, saddle-like structure with a small radius, designed to improve fluid distribution and reduce channeling. Key shape factors include specific surface area (typically 150-300 m²/m³), porosity (0.85-0.92), and tortuosity. These parameters influence the packing’s ability to handle liquid and gas flow, with lower pressure drop and higher throughput compared to traditional raschig rings in some cases. Intalox Saddle Ring: An advanced variant, it features a truncated design with flanges on its edges, which enhances gas-liquid contact and reduces packing fouling. Its shape factors are optimized for high efficiency: higher specific surface area (200-350 m²/m³), lower tortuosity, and improved void fraction (0.90-0.95). These modifications lead to better mass transfer rates and lower pressure drop, making it suitable for challenging industrial applications. Comparison of Shape Factors: Both packings have distinct shape factors. Arc saddle rings prioritize simplicity and fluid handling, while Intalox saddle rings focus on enhanced contact and durability. The choice depends on process requirements: for low-pressure drop and ease of installation, arc saddle rings work; for high-efficiency separation and resistance to fouling, Intalox saddle rings are superior. Conclusion: Understanding the shape factors of these saddle rings is essential for selecting the right tower internal. By balancing geometry, performance, and application needs, engineers can optimize column design for maximum efficiency and reliability.
