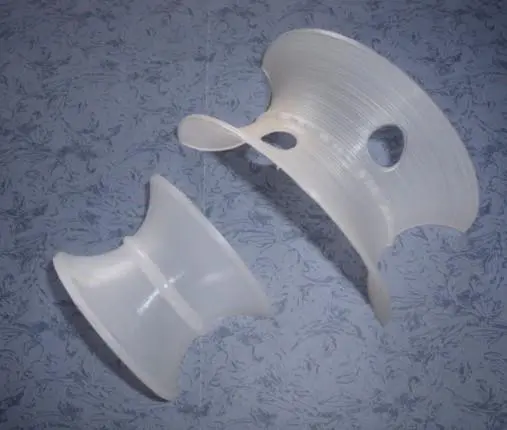

Both Intalox saddle ring and Berl saddle ring are essential types of packed tower internals (packing) used in chemical, petrochemical, and environmental engineering for mass transfer and heat exchange processes. Though similar in basic function, they have distinct structural and performance differences that impact tower efficiency and operation. Berl saddle ring, developed in the 1950s, features a simple, open design with two flanges on opposite sides, forming a semicircular shape. Its surface is typically smooth, though internal concavities may create some stagnant zones. In contrast, Intalox saddle ring, introduced by Norton in the 1970s, incorporates optimized geometry: rounded edges and side notches that eliminate stagnant areas, enhance fluid distribution, and reduce channeling—common issues in traditional Berl saddles. Void fraction is a critical parameter. Berl saddles have a void fraction around 80%, while Intalox saddles achieve ~90% due to their more open structure. Higher void fraction reduces pressure drop, a key advantage for high-flow applications. For specific surface area, Berl saddles offer ~150-200 m²/m³, while Intalox, with its smoother, less concave surface, provides ~180-220 m²/m³, balancing efficiency and flow. Intalox’s design minimizes wall effects and improves wetting, boosting mass transfer efficiency by 10-15% compared to Berl saddles. This makes it ideal for applications requiring precise separation, such as distillation columns processing sensitive mixtures. Berl saddles, made from materials like ceramic or metal, can be fragile due to their sharp flanges, leading to breakage under high pressure or abrasion. Intalox, with its rounded edges and stronger structural integrity, is more durable, especially in corrosive or high-temperature environments. Berl saddles remain cost-effective for low-pressure, low-flow systems like water treatment or simple absorption towers. Intalox is preferred in high-performance towers, including large-scale distillation, gas absorption, and vacuum service, where efficiency and reliability are critical. In summary, while both are saddle packings, Intalox saddle rings outperform Berl saddles in efficiency, pressure drop, and durability. The choice depends on the process requirements—Berl for simplicity and cost, Intalox for high-performance, high-flow separations.
