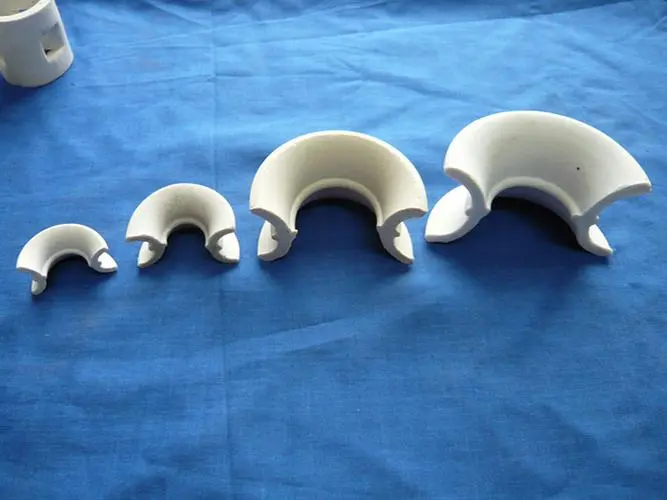

Intalox saddle ring packing, a type of tower internal, combines saddle and ring structures to enhance mass transfer efficiency, widely used in distillation, absorption, and extraction towers. Its packing factor (F) is a critical performance index, defined as the ratio of pressure drop (ΔP) to the square of superficial velocity (u), calculated by F = ΔP / (ε² * u²), where ε is porosity.
The packing factor depends on geometric design: the saddle-shaped surface and ring edges increase specific surface area (a), while the annular inner space reduces flooding risk, balancing high efficiency and low pressure drop. Material choice (e.g., metal, plastic) affects surface roughness, influencing fluid distribution and mass transfer rate.
Operation conditions also impact F: higher superficial velocity increases ΔP, raising F; lower velocity may reduce efficiency. Accurate F calculation, often via experimental methods or empirical correlations, helps engineers optimize tower internal performance. By understanding F, industries can select the right packing, adjust operating parameters, and improve separation efficiency.
