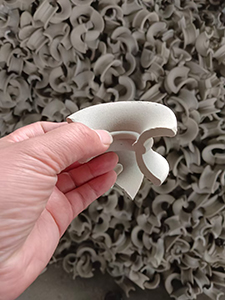

Intalox saddle ring packing, a common tower internal in chemical and petrochemical processes, is widely used for gas-liquid contact due to its unique saddle-like design. However, despite its popularity, it presents several notable disadvantages that engineers and operators should consider before selection.
First, compared to advanced packings like pall rings or ladder towers, Intalox saddle rings often exhibit lower mass transfer efficiency. Their open structure, while promoting some fluid distribution, lacks the optimized geometry of modern packings, leading to reduced surface area utilization and shorter contact time between phases. This can result in incomplete separation or purification, lowering overall process yields.
Second, the design of Intalox saddle rings tends to cause higher pressure drop across the tower. The saddle shape, though increasing surface area, creates more resistance to fluid flow, especially in high-flow-rate applications. Higher pressure drop translates to increased energy consumption for pumps and fans, directly impacting operational costs over time.
Third, initial costs for Intalox saddle rings are generally higher than traditional packings like ceramic or metal rings. While their durability may offset some costs long-term, the upfront investment can be prohibitive for budget-sensitive projects, making them less cost-effective compared to alternatives with similar performance.
Additionally, Intalox saddle rings have limited handling capacity for fouling or viscous fluids. Their interconnected channels can easily trap solids or viscous materials, leading to blockages and reduced flow rates. Regular cleaning and maintenance are often required, increasing downtime and operational complexity.
Finally, in large-diameter towers, uniform fluid distribution is harder to achieve with Intalox saddle rings. Uneven packing settlement or maldistribution can create "dead zones" where mass transfer is inefficient, further compromising the tower’s performance.
In summary, while Intalox saddle ring packing offers certain advantages, its lower efficiency, higher pressure drop, cost, and handling limitations make it necessary to carefully evaluate against alternatives like structured packings or other random packings for specific process needs.
