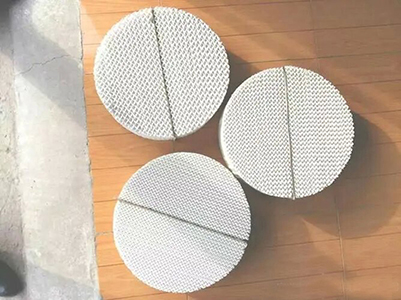

550y ceramic structured packing is a specialized, high-efficiency separation medium engineered for large diameter distillation columns. Designed to maximize mass transfer and minimize pressure drop, it addresses the unique challenges of scaling up distillation processes, ensuring stable, reliable operation even in industrial-scale towers with diameters exceeding 1 meter. Its structured design, featuring precise corrugation geometry, makes it a critical component for achieving optimal separation in large-scale chemical and petrochemical production.
.jpg)
Key Design Principles Behind 550y Ceramic Structured Packing
The "550y" designation refers to the packing’s specific geometry: 550 corrugations per meter, balancing surface area and void fraction to enhance mass transfer. Crafted from high-purity alumina ceramic (typically 90-95% Al₂O₃), it exhibits exceptional chemical inertness, withstanding temperatures up to 1,200°C and resisting corrosion from acids, alkalis, and organic solvents—critical for harsh industrial environments. The structured arrangement, with a typical 30° or 45° wave angle, creates uniform liquid distribution and gas flow paths, reducing channeling and dead zones. Its specific surface area, around 500-550 m²/m³, ensures sufficient contact between vapor and liquid phases, driving higher separation efficiency.
Product Specifications and Industrial Applications of 550y Ceramic Packing
550y ceramic structured packing is available in standard sizes (e.g., 1m×1m×0.5m modules) and custom dimensions to fit large column diameters. Its production involves precision extrusion of ceramic paste, followed by high-temperature sintering to achieve mechanical strength and chemical stability. In practice, it’s widely used in:
- Petrochemical refineries: Distilling crude oil fractions (e.g., gasoline, diesel) in large diameter columns, where high efficiency reduces the number of theoretical stages needed.
- Fine chemical synthesis: Separating solvents like ethanol, acetone, or specialty organics, where corrosion resistance protects against reactive feedstocks.
- Environmental engineering: Treating industrial wastewater for volatile organic compound (VOC) removal in large scrubbers, leveraging its inertness to avoid secondary pollution.
- The result? Significantly improved separation yields (up to 15% higher than traditional random packing) and reduced energy consumption, as lower pressure drops cut pump and fan costs by 8-20%.
FAQ:
Q1: What is the typical specific surface area of 550y ceramic structured packing?
A1: The specific surface area of 550y ceramic structured packing is approximately 520-550 m²/m³, optimized to balance mass transfer and flow dynamics.
Q2: Can 550y ceramic packing be used in columns with diameters larger than 2 meters?
A2: Yes, 550y ceramic structured packing is scalable for large-diameter columns (2m+). Its modular design allows easy assembly into sections, ensuring uniform performance across the column cross-section.
Q3: How does 550y ceramic packing compare to plastic or metal packing in terms of service life?
A3: Ceramic 550y packing offers longer service life (15-20 years) due to superior corrosion and high-temperature resistance, outperforming plastic (5-8 years) and metal (10-15 years) alternatives in harsh chemical or high-temperature applications.
