塑料/金属/陶瓷鲍尔环型号规格

鲍尔环分为塑料、金属、陶瓷三种材质，分别有不同的规格参数，内伸舌片设计，提升气液分布效率，使环内表面利用率增加30%以上，鲍尔环的阻力小、通量大、操作的弹性大、分离效率高。所以在相同的降压条件下,它的处理量要比拉西环的大的多...

产品询盘

以下是常见的鲍尔环规格参数表：

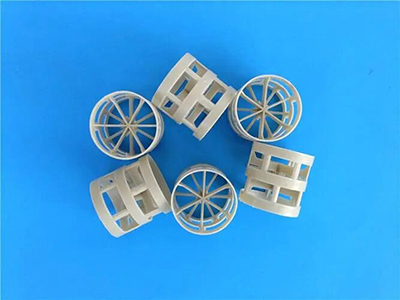

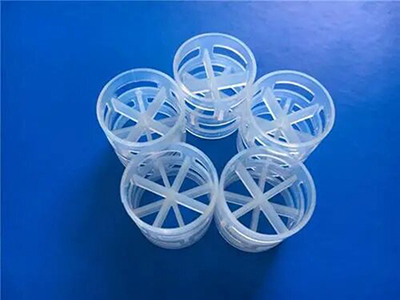

塑料鲍尔环

规格（mm）
直径 × 高度 × 壁厚（mm）
比表面积（m²/m³）
空隙率（%）
堆重（kg/m³）
堆积个数（个 /m³）
干填料因子（m⁻¹）
φ25
25×25×1.2
213
91
85
48300
285
φ38
38×38×1.4
151
91
82
15800
200
φ50
50×50×1.5
100
92
60
6300
130
φ76
76×76×2.6
72
92
62
1930
92

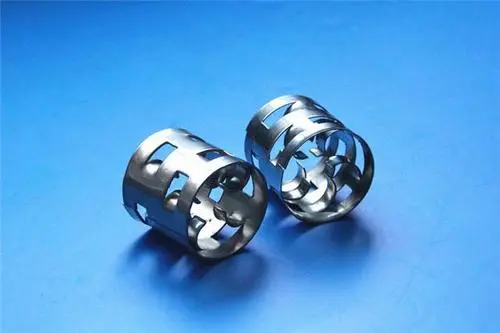

金属鲍尔环

规格（mm）
直径 × 高度 × 壁厚（mm）
比表面积（m²/m³）
空隙率（%）
堆重（kg/m³）
堆积个数（个 /m³）
干填料因子（m⁻¹）
φ25
25×25×0.5
219
95
393
51940
255
φ38
38×38×0.6
146
96
318
15180
165
φ50
50×50×0.8
109
96
314
6500
124
φ76
76×76×1.2
71
96
308
1830
80

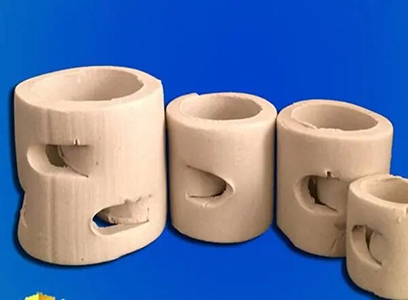

陶瓷鲍尔环

规格（mm）
直径 × 高度 × 壁厚（mm）
比表面积（m²/m³）
空隙率（%）
堆重（kg/m³）
堆积个数（个 /m³）
干填料因子（m⁻¹）
φ25
25×25×3
210
73
630
36000
540
φ38
38×38×4
140
75
590
12000
332
φ50
50×50×5
100
78
520
4900
210
φ76
76×76×9
70
80
470
1500
137
