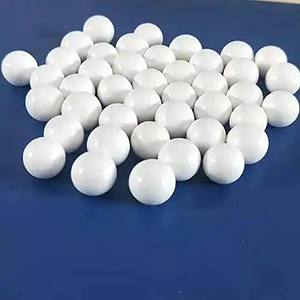

In the highly regulated landscape of pharmaceutical manufacturing, the purity and quality of Active Pharmaceutical Ingredients (APIs) are non-negotiable. API milling, a critical step in transforming raw materials into fine, consistent particles, demands precision tools that align with the strictest regulatory standards. Traditional grinding media, such as stainless steel or alumina balls, often introduce metal impurities or fail to achieve the required particle size distribution, risking compliance violations and product recalls. Zirconia grinding balls have emerged as the gold standard for pharmaceutical API milling, offering exceptional purity, durability, and regulatory adherence. This article explores how these advanced media address the dual challenges of performance and compliance in modern pharmaceutical production.
.jpg)
Superior Purity: The Cornerstone of Regulatory Adherence
Purity is the foundation of regulatory compliance in pharmaceutical manufacturing, and zirconia grinding balls excel here. Composed primarily of zirconium dioxide (ZrO₂), these balls are engineered to minimize metal and foreign material contamination, which are primary concerns for regulatory bodies like the FDA and EMA. Unlike alumina or steel media, zirconia grinding balls typically contain zirconium oxide concentrations of 95% or higher, with trace impurities such as aluminum oxide (Al₂O₃), silica (SiO₂), and iron (Fe) strictly limited to parts per million (ppm) levels. For example, medical-grade zirconia grinding balls are often tested to ensure iron content is below 50 ppm, aluminum oxide below 0.5%, and silica below 0.3%, aligning with USP (United States Pharmacopeia) and EP (European Pharmacopoeia) purity thresholds for pharmaceutical excipients. This ultra-high purity eliminates the risk of cross-contamination during milling, ensuring APIs meet the strict chemical and physical specifications required for market approval.
Enhanced Grinding Efficiency: Balancing Performance and Compliance
Regulatory compliance cannot come at the cost of production efficiency, and zirconia grinding balls deliver both. Their high density (6.0–6.2 g/cm³) and hardness (HRA 85–90) enable faster, more uniform particle size reduction compared to traditional media, reducing milling time and energy consumption. This efficiency not only lowers operational costs but also minimizes the risk of overheating during prolonged grinding, which can degrade API stability. Critically, the low wear rate of zirconia grinding balls—often less than 0.1% per 100 hours of operation—further reduces the introduction of foreign particles, maintaining API purity throughout the process. By combining efficiency with minimal contamination risk, these balls help manufacturers meet strict Good Manufacturing Practice (GMP) requirements, where every step must be documented, controlled, and auditable.
Global Regulatory Frameworks: Navigating Compliance Challenges
The pharmaceutical industry operates within a complex web of global regulatory frameworks, from FDA’s Current Good Manufacturing Practice (cGMP) in the U.S. to the EMA’s Guidelines on Pharmaceutical Quality in Europe. Zirconia grinding balls must therefore be certified to meet these diverse standards. Leading manufacturers subject their products to rigorous testing, including ISO 9001 quality management system certification, and compliance with ISO 13485 for medical devices. Additionally, many suppliers provide comprehensive documentation, such as Certificate of Analysis (CoA) and batch records, to demonstrate adherence to regulatory requirements. For example, balls used in sterile API production must comply with aseptic processing guidelines, and some suppliers offer gamma-sterilized options to meet this need. By partnering with certified suppliers, pharmaceutical companies can ensure their milling processes align with global regulatory expectations, avoiding costly delays and ensuring market access.
FAQ:
Q1: What purity levels do your zirconia grinding balls meet for pharmaceutical API milling?
A1: Our zirconia grinding balls feature a 95% ZrO₂ composition, with impurities strictly controlled to <50 ppm iron, <0.5% Al₂O₃, <0.3% SiO₂, and <0.1% other oxides, fully complying with USP <232> and EP 2.9.12 purity standards.
Q2: How do zirconia grinding balls improve compliance compared to traditional media like alumina?
A2: Unlike alumina, zirconia grinding balls have significantly lower wear rates (<0.1%/100 hours) and minimal metal contamination, reducing API impurity risks. Their higher density also enables faster, more uniform grinding, minimizing process time and non-compliant overprocessing.
Q3: Are your zirconia grinding balls approved by regulatory bodies like the FDA or EMA?
A3: Yes, our products are certified to meet FDA cGMP requirements, EU GMP Annex 1, and EMA guidelines. They carry ISO 9001 and ISO 13485 certifications, with CoAs and batch traceability available upon request.
