Intalox saddle ring packing, a high-performance tower internal, plays a crucial role in distillation, absorption, and extraction processes. Its unique design enhances mass transfer efficiency compared to traditional packing such as raschig rings or pall rings. To meet diverse industrial needs, Intalox saddle ring packing is manufactured using several key materials, each with distinct properties.
First, plastic materials dominate for their chemical resistance and cost-effectiveness. Polypropylene (PP) is widely used due to its excellent resistance to acids, alkalis, and organic solvents, combined with low weight and ease of processing. Polyvinyl chloride (PVC) is another option, offering good耐腐蚀性 to acids and certain solvents, though its heat resistance is limited, making it suitable for moderate temperature applications. Polytetrafluoroethylene (PTFE) and polyvinylidene fluoride (PVDF) are selected for extreme chemical environments, providing superior resistance to strong oxidizing agents and high temperatures.
Metal-based Intalox saddle ring packing is favored for high-temperature and high-pressure scenarios. Stainless steel grades like 304 and 316L are common choices. 304 stainless steel delivers good general corrosion resistance, making it ideal for most industrial fluids. 316L, with higher chromium and molybdenum content, offers enhanced resistance to pitting and crevice corrosion, suitable for more aggressive media. Titanium alloys are employed for highly corrosive environments, such as strong acids and saltwater, though their high cost limits widespread use.

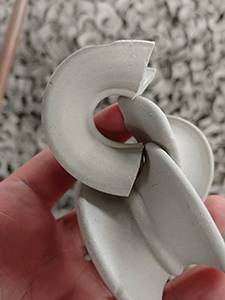

Ceramic Intalox saddle ring packing is valued for its exceptional thermal stability. Traditional ceramics, made from clay and other minerals, withstand high temperatures up to 1000°C and exhibit high mechanical strength. Specialized ceramics like cordierite and alumina further improve thermal shock resistance, making them suitable for applications involving rapid temperature changes, such as refineries and chemical furnaces.
The selection of Intalox saddle ring packing materials depends on factors like the nature of the process fluid (corrosive, non-corrosive, high temperature), operating pressure, and budget. By choosing the right material, industries can ensure optimal performance, extended service life, and reduced maintenance costs for their distillation and separation systems.
