structured packing, a critical component of tower internals in chemical engineering, has gained widespread attention for its superior separation efficiency compared to traditional random packing. Unlike random packing, which consists of irregularly shaped particles, structured packing features ordered, periodic arrangements of materials, making it ideal for processes requiring high precision and low pressure drop. This article explores the main types of structured packing and their unique characteristics.
.jpg)
The first major category is metal wire gauze packing. Constructed from woven metal wire, this packing offers an exceptionally high specific surface area (typically 350–1000 m²/m³), enabling efficient mass and heat transfer. Its fine mesh structure ensures excellent wettability, promoting uniform liquid distribution. However, it is most suitable for low to medium pressure systems and is particularly effective in vacuum distillation and processes with corrosive fluids, though its cost is relatively higher than other materials.
Next, metal plate corrugated packing stands out for its mechanical strength and durability. Made from stamped or expanded metal plates, this packing has a moderate specific surface area (200–500 m²/m³) and operates under high pressure and temperature conditions. Its rigid structure resists deformation, making it ideal for high-flow rate applications such as refinery distillation columns. The larger spacing between plates also minimizes the risk of fouling, enhancing long-term operational stability.
.jpg)

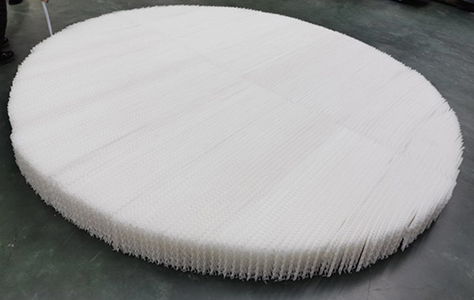

For applications where cost and chemical resistance are priorities, plastic structured packing is the go-to choice. Typically composed of polypropylene (PP) or polyvinyl chloride (PVC), this packing has a lower specific surface area (100–350 m²/m³) but offers excellent resistance to acids, alkalis, and organic solvents. Its lightweight nature reduces the load on tower supports, and it is widely used in small-scale separation processes like solvent recovery and water treatment, where efficiency requirements are less stringent.
Lastly, composite structured packing combines the advantages of different materials. For instance, a metal frame with plastic corrugated sheets integrates the high efficiency of metal with the corrosion resistance of plastic, creating a versatile option for harsh environments. This type is gaining traction in industries like pharmaceuticals and food processing, where both separation performance and material compatibility are critical.
.jpg)
In summary, the choice of structured packing depends on specific process requirements, including separation efficiency, pressure drop, temperature, and chemical compatibility. By understanding the characteristics of each type, engineers can select the most suitable tower internal to optimize process performance and reduce operational costs.
