The petrochemical industry depends on cracking processes to transform heavy hydrocarbons into lighter, high-value products like gasoline, diesel, and olefins. A core challenge in these operations is separating complex hydrocarbon fractions—each with distinct boiling points and molecular weights—into pure components. random packing has emerged as a critical technology here, offering a balance of efficiency, flexibility, and cost-effectiveness that aligns with the dynamic demands of modern cracking units. Unlike structured packing, which relies on ordered channeling, random packing’s irregular, self-supporting design ensures consistent fluid distribution and mass transfer, making it indispensable for hydrocarbon fractionation.
.jpg)
Key Advantages of Random Packing in Petrochemical Cracking

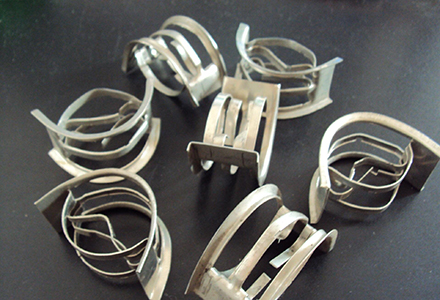

Random packing’s superiority in petrochemical cracking stems from its unique operational benefits. First, its random distribution minimizes dead zones in the column, ensuring every part of the packing is utilized for vapor-liquid contact. This reduces bypassing, a common issue with traditional packed beds, and elevates separation efficiency by maximizing the contact time between phases. Second, random packing typically exhibits lower pressure drop compared to some structured designs, reducing energy consumption for pumping and lowering operational costs. Additionally, its modular structure allows easy installation and maintenance, with elements like Intalox saddles or metal rings replacing damaged parts without disrupting the entire column. These traits make random packing ideal for both new installations and retrofitting existing cracking systems.
Design Features Optimizing Hydrocarbon Separation
The performance of random packing in separating hydrocarbons is heavily influenced by its design parameters. Material selection—ranging from stainless steel and titanium for high-temperature, corrosive environments to plastic (e.g., polypropylene) for cost-sensitive applications—directly impacts durability and chemical resistance. Shape and size further refine efficiency: ring-shaped packing (e.g., pall rings) offers a balance of surface area and void space, while saddle-shaped packing (e.g., Intalox saddles) enhances liquid distribution by reducing hold-up. The specific surface area, a key metric, is optimized to maximize mass transfer—higher values (e.g., 200-500 m²/m³) mean more sites for vapor-liquid interactions, critical for separating light and heavy hydrocarbons. Porosity, typically 70-90%, ensures smooth fluid flow and prevents channeling, maintaining consistent separation across varying feed compositions.
Industry Applications and Performance Metrics
Random packing is widely adopted across petrochemical cracking processes, from catalytic cracking (FCC) to steam cracking. In FCC units, it supports the separation of cracked gas streams, where butadiene, propylene, and other light olefins are recovered. Steam cracking, which produces ethylene and propylene from naphtha or ethane, benefits from its ability to handle high vapor velocities and maintain stable operating conditions. Performance metrics, such as theoretical plates per meter (a measure of separation efficiency) and throughput capacity, are rigorously monitored. For example, a 2-inch metal random packing in a 5-meter cracking column can achieve a separation efficiency of 8-12 plates/m, processing 100,000 barrels of feed per day with a pressure drop under 2 kPa. Real-world data shows that upgrading to random packing can increase product yields by 5-10% while reducing maintenance downtime by 30%, making it a preferred choice for refineries seeking operational excellence.
FAQ:
Q1: What makes random packing suitable for hydrocarbon fraction separation in cracking units?
A1: Its high specific surface area enhances vapor-liquid contact, low pressure drop reduces energy use, and irregular structure minimizes channeling, ensuring uniform separation.
Q2: How does packing material affect separation performance?
A2: Materials like stainless steel resist corrosion in high-temperature environments, while plastic options (e.g., polypropylene) offer chemical resistance at lower costs.
Q3: Can random packing be integrated into existing cracking columns?
A3: Yes, its modular design allows easy retrofitting, reducing installation time and enabling gradual capacity upgrades without full column shutdowns.
