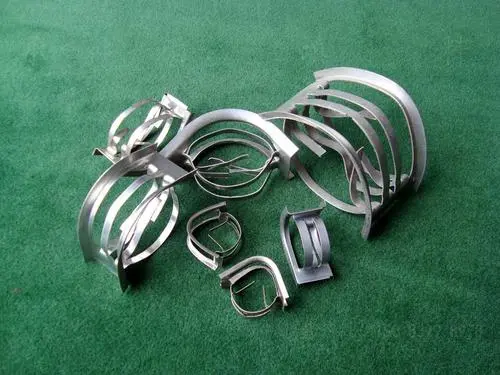

Intalox saddle ring packing is a widely recognized tower internal in distillation and absorption systems, celebrated for its superior separation efficiency and balanced fluid dynamics. A critical operational parameter for evaluating its practicality is pressure drop, defined as the resistance the fluid experiences while flowing through the packing bed. This parameter directly impacts energy consumption and system performance, making it essential for industrial process optimization.
The pressure drop of Intalox saddle packing is influenced by multiple factors, including packing size, bed density, fluid velocity, and the physical properties of the vapor/liquid mixture (e.g., viscosity, density). Smaller saddle rings tend to increase pressure drop due to heightened bed resistance, whereas lower packing densities can reduce pressure loss while preserving efficiency. Unlike some traditional packings, Intalox saddle rings are designed with a unique hourglass shape and enhanced surface area, which helps minimize pressure drop while promoting uniform flow distribution.
In comparison to conventional random packings such as metal pall rings, Intalox saddle ring packing typically exhibits 10-30% lower pressure drop for equivalent separation results. This advantage is particularly valuable in energy-intensive distillation processes, as reduced pressure drop translates to lower pump or fan power requirements, lowering operational costs. Field applications in petrochemical and chemical plants have confirmed that Intalox saddle packings can achieve pressure drop values ranging from 0.3 to 1.8 mH₂O per meter of packing height, depending on operating conditions like liquid/vapor load and flow regime.
To optimize pressure drop, engineers often adjust packing height, ensure proper alignment, and select appropriate packing sizes based on the specific process requirements. By balancing efficiency and pressure loss, Intalox saddle ring packing remains a top choice for industries seeking reliable, energy-efficient tower internals. Its consistent performance in maintaining low pressure drop while delivering high separation efficiency makes it indispensable in modern distillation systems.
