How to Design a Structured Packing System for Maximum Efficiency?

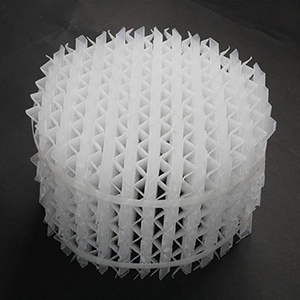

structured packing, a key tower internal in chemical separation processes, directly impacts mass transfer efficiency and system performance. Designing it to maximize efficiency requires balancing geometric, material, and operational factors. Key parameters include specific surface area (A, 100-500 m²/m³), which enhances mass transfer but may increase pressure drop, and void fraction (0.7-0.95), balancing flow capacity and efficiency. Material selection—metal for high temps, plastic for corrosion, ceramic for purity—matters. Hydrodynamics: avoid flooding by calculating velocity and pressure drop; uniform liquid/gas flow reduces channeling. Mass transfer efficiency, measured by HETP (height equivalent to a theoretical plate), is minimized via optimized geometry. Design steps: evaluate process conditions (feed, separation, load), select A/void fraction, simulate with CFD/HETP models, and validate via pilot testing. Optimization: adjust corrugated angles (30°-45°) for liquid redistribution, use wire gauze/metal mesh for better wettability, and integrate precise distributors/separators with tower internals. Balancing these ensures maximum efficiency, cutting energy costs and enhancing chemical tower performance.
