The electronics and semiconductor industries are vital to modern technology, yet their manufacturing processes generate complex wastewater containing heavy metals, acids, solvents, and organic compounds—posing significant environmental challenges. Traditional wastewater treatment systems often struggle with inefficiencies, especially when dealing with high-flow, high-pollutant streams. In this context, ceramic random packing has emerged as a game-changer, offering unmatched durability, chemical resistance, and mass transfer capabilities to address these unique treatment needs. Its integration into electronic and semiconductor facilities not only ensures compliance with strict environmental regulations but also enhances the overall sustainability of production cycles.

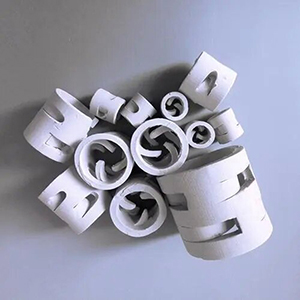

.jpg)
Key Advantages of Ceramic Random Packing in Electronic Wastewater Treatment
Ceramic random packing, composed of inert, porous materials, stands out due to its inherent properties. First, its exceptional corrosion resistance makes it ideal for treating acidic or oxidizing wastewater, common in semiconductor wet etching and electronic component cleaning. Unlike metal or plastic alternatives, ceramic does not degrade or leach harmful substances, ensuring treated water meets discharge standards. Second, its high specific surface area—created by carefully designed irregular shapes—accelerates mass transfer, enabling more efficient adsorption and reaction between pollutants and treatment agents. Additionally, ceramic’s thermal stability allows it to withstand the high temperatures often encountered in wastewater pre-treatment stages, reducing the risk of material failure. These advantages collectively make ceramic packing a reliable choice for maintaining optimal treatment performance in electronics facilities.
Integration in Semiconductor Production: Real-World Application
In semiconductor fabrication, wastewater arises from multiple stages: wafer cleaning, photolithography, and chemical mechanical planarization (CMP). Each process generates distinct contaminants, from ammonia and phosphates to heavy metals like copper and nickel. Ceramic random packing is seamlessly integrated into these treatment workflows, particularly in packed bed reactors or column systems. For instance, in CMP wastewater treatment, ceramic packing provides the necessary surface area for activated carbon adsorption, effectively removing particles and organic residues. In etching wastewater, its resistance to hydrofluoric acid and other aggressive chemicals ensures long-term functionality, minimizing downtime for maintenance. By optimizing contact between wastewater and treatment media, ceramic packing reduces the volume of sludge produced and improves the clarity of effluent, aligning with the industry’s push for cleaner production.
Future Trends: Sustainability and Technological Innovation
As environmental regulations tighten globally, the demand for sustainable wastewater solutions in electronics and semiconductors continues to rise. Ceramic random packing is at the forefront of this shift, with ongoing advancements enhancing its performance and lifecycle. Innovations in material science have led to the development of lightweight, high-strength ceramic variants with even higher porosity, further boosting mass transfer rates. Additionally, manufacturers are exploring modular designs that simplify installation and replacement, reducing operational costs. The material’s chemical inertness also supports its reuse in treatment cycles, lowering reliance on disposable media. With the growing focus on circular economy principles, ceramic packing’s durability and recyclability position it as a cornerstone of future-proofed wastewater management in the electronics sector.
FAQ:
Q1: What makes ceramic random packing superior for electronic wastewater compared to other materials?
A1: Its high corrosion resistance to acidic/oxidizing agents, thermal stability, and large surface area for efficient mass transfer outperform plastic or metal alternatives.
Q2: How does ceramic packing impact the overall cost of wastewater treatment in semiconductor facilities?
A2: Reduced maintenance needs and longer service life (15+ years) lower long-term operational costs, offsetting initial investment.
Q3: Can ceramic random packing be used in both batch and continuous wastewater treatment systems?
A3: Yes, its versatile design suits various configurations, from small-scale batch reactors to large continuous flow systems.
