In tower internals, packed columns depend on efficient packing to enhance mass transfer and separation. Cascade Mini-Rings and Intalox saddle rings are key packing types, each with distinct design and performance.
Cascade Mini-Rings are small-diameter (16–50 mm) rings with flanged ends, boosting efficiency. Flanges strengthen structure and improve liquid distribution, reducing channeling. Made from materials like stainless steel or plastic, they have high specific surface area (200–500 m²/m³) and robust stability, ideal for precise separations.

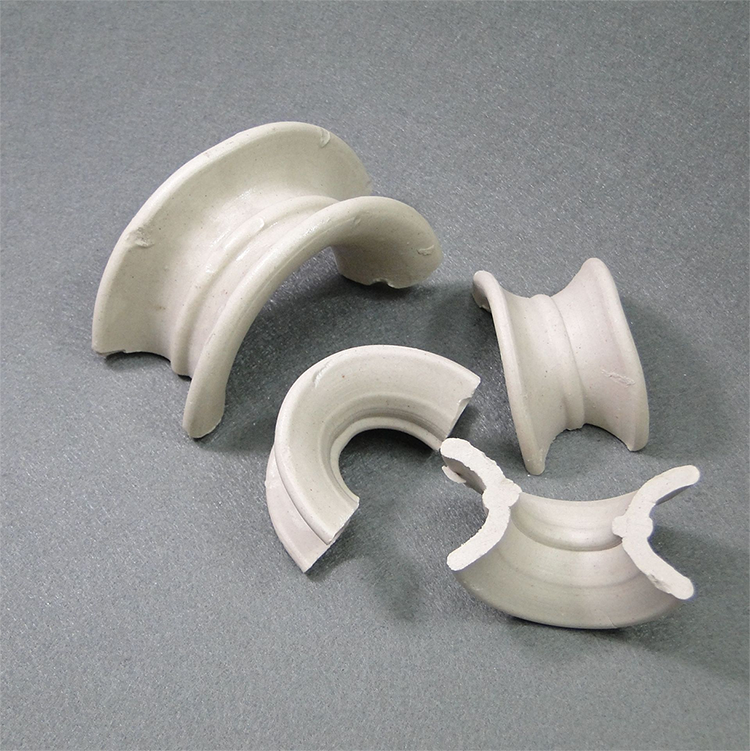

Intalox Saddle Rings, a modified saddle design, combine ring and saddle benefits. Their conjugate arcuate shape creates an open structure, enhancing gas-liquid contact by improving liquid flow and minimizing stagnant zones. With 150–400 m²/m³ surface area, they are lighter and have lower pressure drop than some rings, suitable for high-throughput systems.
Key differences:
- Structure: Cascade is rigid, flanged rings; Intalox is flexible, arcuate saddles.
- Performance: Cascade offers higher mass transfer efficiency (better wettability, surface area); Intalox provides superior gas/liquid flux and lower pressure drop.
- Applications: Cascade suits high-efficiency, low-throughput (e.g., fine chemicals); Intalox fits large-scale, high-throughput (e.g., petroleum refining) with energy efficiency.
Choosing depends on separation goals, throughput, and energy constraints for optimal packed column performance.
