Industrial electrodialysis (ED) has emerged as a cornerstone technology in industrial chemical processing, enabling efficient ion separation, desalination, and purification across sectors like water treatment, pharmaceuticals, and metal finishing. Central to its performance is the random packing within ED stacks, which directly influences flow distribution, mass transfer rates, and long-term operational stability. Conventional off-the-shelf packings often fail to align with the unique demands of diverse ED systems—from high-pressure environments to corrosive feed streams—highlighting the critical need for customized random packing solutions.
.jpg)
Material Selection: Aligning with Electrodialysis Requirements
The first step in developing effective custom random packing is material selection, a process that hinges on balancing chemical resistance, mechanical strength, and surface properties. In ED applications, feed streams frequently contain aggressive electrolytes, strong acids, or heavy metals, necessitating packings resistant to corrosion and degradation. Polypropylene (PP) and polyvinylidene fluoride (PVDF) are widely favored for their exceptional chemical inertness, while ceramic and metal mesh options are chosen for high-temperature or high-pressure scenarios. Beyond resistance, surface characteristics play a pivotal role: hydrophilic packings minimize concentration polarization by promoting uniform wetting, whereas structured surfaces with micro-roughness enhance ion adsorption and desorption rates, directly improving separation efficiency.
Structural Design: Enhancing Flow Distribution and Mass Transfer

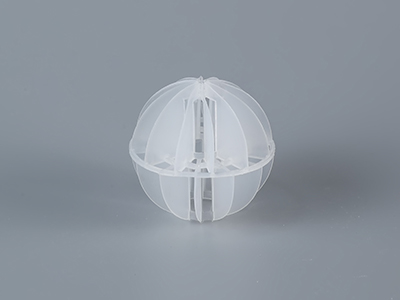

Random packing geometry is engineered to optimize two key ED parameters: flow distribution and mass transfer efficiency. Unlike structured packings, random packings feature irregular, spherical, or鞍形 (saddle-shaped) particles, which naturally create a more uniform flow pattern across the ED stack, reducing dead zones and channeling. Critical design parameters include void fraction (typically 70-80% for optimal flow), specific surface area (ranging from 100-300 m²/m³ to maximize ion exchange), and particle size distribution (PSD). By tailoring these parameters—such as reducing PSD to 5-10 mm for high-viscosity feeds or increasing specific surface area to 250 m²/m³ for rapid ion transport—custom random packings mitigate浓差极化 (concentration polarization), a common ED challenge that limits performance.
Industrial Case Studies: Real-World Performance Improvements
Field applications demonstrate the tangible benefits of custom random packing in ED systems. A leading chemical manufacturer treating heavy metal-laden wastewater previously struggled with low ion removal rates (65%) and frequent packing clogging when using standard plastic packings. By collaborating with packing specialists, they designed a custom random packing with a PVDF matrix, 80% void fraction, and 200 m²/m³ specific surface area. Post-installation, ion removal efficiency increased to 82%, operational pressure drop decreased by 18%, and packing replacement intervals extended from 12 to 36 months, resulting in an annual cost savings of over $40,000. Similarly, a desalination plant reported a 25% increase in water production capacity after upgrading to a custom random packing optimized for low-salinity feed streams, validating the impact of tailored design on ED performance.
FAQ:
Q1: How are custom random packings engineered to fit specific electrodialysis equipment?
A1: Custom packings are designed through 3D flow simulation and material testing, aligning particle size, void fraction, and surface properties with the ED stack’s dimensions, flow rate, and feed chemistry.
Q2: What makes random packing superior to structured packing in ED applications?
A2: Random packing offers better flow uniformity, reducing channeling and dead zones, and is more adaptable to irregular ED stack geometries, making it ideal for variable or fouling-prone feeds.
Q3: How often should custom random packings be replaced in industrial ED systems?
A3: Replacement intervals depend on feed composition and operating conditions. Typically, 3-5 years for chemical processing, 5-7 years for water treatment, with periodic inspection to assess wear and chemical degradation.
