The global push to mitigate climate change has intensified the focus on carbon capture and storage (CCS) technologies, critical for reducing CO2 emissions from industrial flue gases. Among these, cascade ring packing has emerged as a key innovation, revolutionizing CO2 absorption efficiency in carbon capture systems. As industrial activities like power generation, manufacturing, and chemical processing continue to release significant amounts of CO2, the demand for high-performance, cost-effective packing solutions has surged. Cascade ring packing, with its unique design, addresses the challenges of traditional填料 (packing) by maximizing mass transfer and ensuring stable operation, making it indispensable for modern carbon capture applications.
.jpg)
< h2>Understanding Cascade Ring Packing Structure and Design< /h2>

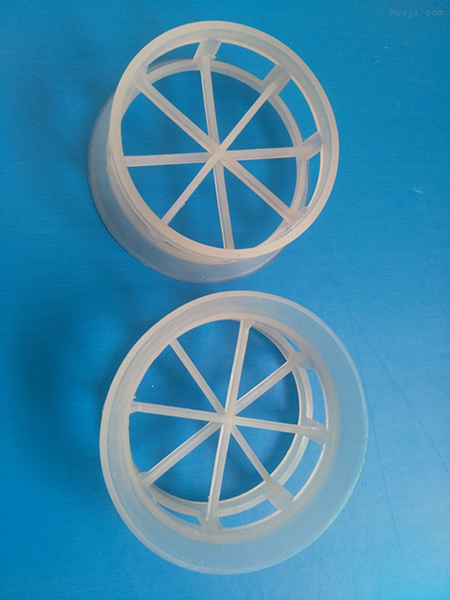

Cascade ring packing is a type of structured填料 characterized by its annular shape with integrated "cascade" ridges or notches on the inner surface. Constructed from materials such as stainless steel, polypropylene (PP), or PVDF, it balances mechanical strength with chemical resistance, critical for harsh industrial environments. Its key structural features include:
- High Specific Surface Area: Typically ranging from 150 to 500 m²/m³, this maximizes the contact area between gas (flue gases with CO2) and liquid (absorbents like amine solutions), accelerating mass transfer.
- Optimal Void Fraction: Maintaining 90% or higher porosity ensures minimal pressure drop, reducing energy consumption for gas/liquid circulation.
- Cascade Notches: These intentional indentations disrupt linear flow patterns, promoting uniform liquid distribution and gas dispersion, which prevents "channeling" and ensures consistent absorption across the packing bed.
< h2>Performance Advantages of Cascade Ring Packing in CO2 Absorption< /h2>
The structural design of cascade ring packing directly translates to superior performance in CO2 absorption:
- Enhanced Mass Transfer Efficiency: By increasing the specific surface area and improving gas-liquid contact, cascade ring packing reduces the height equivalent of a theoretical plate (HETP), a key metric for absorption efficiency. This means fewer packing stages are needed, lowering system complexity and footprint.
- High Capacity and Low Pressure Drop: Its balanced porosity and optimized geometry allow for higher gas and liquid flow rates while maintaining low pressure drop—critical for large-scale industrial systems where energy costs are a major concern.
- Stability and Durability: Resistant to corrosion and wear, it maintains performance over extended periods, reducing maintenance frequency and lifecycle costs compared to less robust alternatives.
< h2>Industrial Applications and Implementation Considerations< /h2>
Cascade ring packing finds wide use in industrial carbon capture setups, including:
- Coal-Fired Power Plants: Reduces CO2 emissions from flue gases by integrating into absorption columns with amine-based solvents.
- Steel and Cement Industries: Treats high-temperature, high-sulfur flue gases, leveraging its corrosion resistance and thermal stability.
- Chemical Processing: Ensures efficient CO2 removal from synthesis gas streams in ammonia or methanol production.
When implementing cascade ring packing, key considerations include:
- Material Selection: Matching the packing material to flue gas composition (e.g., stainless steel for acidic gases, PP for low-corrosion environments).
- Packing Size and Configuration: Optimizing bed height and diameter based on gas/liquid flow rates to avoid bypassing or flooding.
- Absorbent Compatibility: Ensuring the packing’s surface properties complement the absorbent (e.g., amine solutions) to prevent fouling or wetting issues.
FAQ:
Q1: How does cascade ring packing improve CO2 absorption compared to traditional packing types?
A1: Its cascade structure enhances gas-liquid contact by promoting uniform distribution and increasing specific surface area, reducing HETP and boosting absorption efficiency.
Q2: Is cascade ring packing suitable for high-humidity flue gas conditions?
A2: Yes, its design minimizes liquid accumulation, making it effective in high-moisture environments where traditional packed beds might suffer from channeling or flooding.
Q3: What maintenance requirements does cascade ring packing have?
A3: With proper material selection, it requires minimal maintenance, typically periodic inspection for wear or corrosion, and occasional cleaning to remove deposits, ensuring long-term performance.
