Wire mesh demisters are critical gas-liquid separation devices widely used in chemical processing, petrochemical, and power generation industries. Their performance directly depends on mechanical stability and separation efficiency, which are determined by their structural design. A comprehensive understanding of their structural composition is essential for optimizing their application and ensuring long-term reliability. This article details the key structural components that form a standard wire mesh demister.

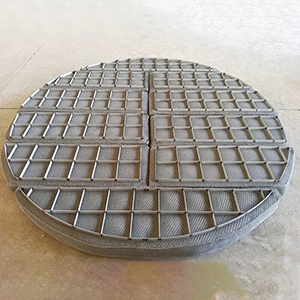

.jpg)
Core Component: Wire Mesh Layer
The wire mesh layer is the heart of the demister, primarily responsible for capturing mist droplets from gas streams. It is typically constructed from fine metal fibers, with materials ranging from stainless steel (e.g., 304, 316L) to nickel alloys (e.g., Monel, Inconel) for high-temperature or corrosive environments. The wire diameter, usually between 0.15mm and 0.5mm, directly impacts separation efficiency: smaller diameters enhance droplet capture by increasing surface area, while maintaining structural integrity. The mesh is woven using techniques like plain weave, twill weave, or Dutch weave, each affecting porosity and droplet retention. Porosity, a key parameter, is controlled by adjusting the spacing between wires, typically ranging from 70% to 90% for optimal performance.
Support Grid Framework
Beyond the mesh layer, a robust support grid provides essential structural stability. It acts as the backbone, maintaining the shape and alignment of the wire mesh layer under operational stress (e.g., gas pressure, temperature fluctuations). The support grid is often made from thicker wire rods (0.8mm–2mm) to ensure load-bearing capacity, with materials matching or supplementing the mesh layer for compatibility. Its design is tailored to the demister’s size and application: circular grids for column-mounted units (common in towers) or square grids for horizontal separators. The grid features evenly spaced support points or frames to distribute the mesh layer’s weight, preventing sagging or deformation over time. In large-scale demisters, auxiliary braces may be added to strengthen critical areas, ensuring the entire structure remains intact during high-velocity gas flow.
Edge and End Components
Edge and end components are vital for sealing and integration with system equipment. The mesh layer is often reinforced at the edges with a rigid border, either by doubling the wire density or embedding it in a solid frame (e.g., plastic or metal flanges). This border stabilizes the mesh perimeter, preventing fraying and ensuring uniform alignment. For industrial applications, end components (such as inlet/outlet nozzles or flanged connections) are integrated into the demister design to facilitate easy installation into pipelines or columns. These components are engineered to minimize pressure drop while ensuring a tight seal, often with gaskets or welding interfaces. In some cases, anti-vortex rings may be added near the outlet to reduce backmixing, further enhancing separation efficiency.
FAQ:
Q1: What are the primary materials used for wire mesh layers in demisters?
A1: Common materials include stainless steel (304, 316L), nickel alloys (Monel 400, Inconel 625), and titanium, selected based on process conditions like temperature and corrosion resistance.
Q2: How does wire mesh porosity affect demister performance?
A2: Higher porosity (e.g., 85–90%) allows greater gas flow but may reduce separation efficiency, while lower porosity (70–80%) improves capture but increases pressure drop. Optimal porosity is process-specific.
Q3: What role does the support grid play in demister longevity?
A3: The support grid maintains the mesh layer’s shape, prevents sagging under gas load, and distributes mechanical stress, directly contributing to the demister’s durability and service life.
