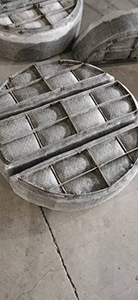

Introduction to Wire Mesh Demisters and Installation Importance
.jpg)
Wire mesh demisters, critical components in industrial processes, are designed to separate entrained liquid droplets from gas streams in systems like distillation columns, absorbers, and compressors. Proper installation is not just a procedural step but a key determinant of their efficiency, longevity, and safety. A poorly installed demister can lead to reduced separation performance, increased energy consumption, and even system failures. This guide outlines the step-by-step process to ensure your wire mesh demister operates at peak capacity, adhering to industry standards and best practices.
Pre-Installation Preparation and Site Inspection
Before any physical setup begins, thorough preparation is essential to avoid delays and ensure a smooth installation. First, inspect the demister unit itself for completeness: check that all components (demister pads, frames, clamps, and hardware) are included and undamaged. Verify material compatibility with the process fluid—common materials like stainless steel 304/316 or nickel alloys are standard for corrosive services, so confirm specifications match operational conditions. Additionally, examine the demister pad for uniformity, ensuring no broken wires, uneven mesh density, or foreign debris that could compromise separation.
Next, assess the installation site. Confirm the demister’s position aligns with design specifications, with sufficient clearance above and around for maintenance access and proper fluid flow. Check the support structure—either a pre-built frame or custom mounting brackets must be level, sturdy, and rated to bear the demister’s weight, including any accumulated liquid during operation. Finally, gather all necessary tools: wrenches, screwdrivers, measuring tapes, lifting equipment (for larger units), and cleaning supplies to prep the installation area. A clean, clutter-free workspace minimizes the risk of errors or accidents.
Step-by-Step Installation Process
The core of the installation involves aligning, securing, and integrating the demister into the system. Start by positioning the demister frame (if applicable) on the prepared support structure. Use shims or leveling tools to ensure the frame is perfectly horizontal, as misalignment can cause uneven liquid distribution and premature wear. Once stable, place the demister pads into the frame. For multi-layer demisters, stack the pads with uniform spacing between layers—typically 25-50mm—to optimize droplet impingement and separation. Secure each layer using the provided clamping hardware, tightening bolts evenly to prevent shifting while avoiding over-tightening, which could deform the mesh.
After installing the pads, connect the demister to the upstream and downstream process lines. Ensure pipe flanges or connections align with the demister’s inlets and outlets, using gaskets and sealants as needed to prevent leaks. For vertical installations, the demister should be centered within the column to ensure balanced gas flow. Finally, secure any external components like drain nozzles or pressure taps, if specified, to complete the system integration.
Post-Installation Testing and Verification
Once installation is complete, rigorous testing confirms the demister’s functionality. Visually inspect all connections and clamps to ensure they are tight and secure. Perform a pressure test if the system operates under pressure, using compressed air or process fluid to check for leaks—special attention should be paid to flange joints and drain points. After initial testing, start the system and monitor performance: measure droplet carryover using sampling or online analyzers to confirm separation efficiency meets design targets. Listen for unusual vibrations or noises, which may indicate misalignment or loose components. Finally, clean the installation site, remove debris, and document the process for future maintenance records.
FAQ:
Q1: What factors influence the duration of wire mesh demister installation?
A1: Installation time depends on unit size, whether it’s a single-layer or multi-layer design, and the complexity of the support structure. Small units typically take 2-3 hours, while large industrial models may require a full day.
Q2: How tight should the clamping hardware be during installation?
A2: Clamps should be tightened to ensure the demister pads remain stable without deforming the mesh. A general rule is to achieve a secure fit that prevents movement but allows slight flexibility for thermal expansion.
Q3: What maintenance is required immediately after installation?
A3: Post-installation, perform a 24-hour operational test to monitor for leaks, then conduct a visual inspection of all components. Routine checks every 30 days will help identify early signs of wear or damage.
