Wire mesh demisters are vital equipment in chemical processing systems, designed to separate entrained droplets from gas streams. This prevents equipment corrosion, ensures product quality, and maintains process stability. Among their design variations, top-mounted and bottom-mounted configurations are most common, each with unique operational traits. Understanding these differences helps select the optimal demister for specific industrial conditions.

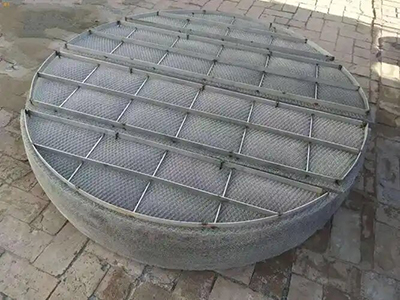

.jpg)
Installation Position and Structural Design
Top-mounted wire mesh demisters are installed at the upper section of a vessel or column, directly under the vapor outlet. Their structure includes reinforced frames or mounting brackets to support the demister media, as they must withstand the weight of accumulated liquid and gas pressure in the upper portion. This placement positions them in the "vapor-rich" zone, where gas velocity is typically highest, requiring robust mesh packing to capture droplets effectively. In contrast, bottom-mounted demisters are fixed at the vessel’s base, often submerged in the liquid phase or in the "liquid-rich" region. Their design prioritizes compatibility with liquid accumulation, using lower-profile frames and integrated drainage slots to prevent overflow, relying more on the vessel’s bottom structure for support.
Performance Characteristics and Efficiency
The installation position significantly impacts efficiency and pressure drop. Top-mounted demisters, operating in high-velocity vapor streams, often use tighter mesh layers or higher wire density to enhance droplet capture, achieving higher separation efficiency in systems with significant vapor flow. However, this dense packing increases pressure drop, as gas must pass through more material. Bottom-mounted demisters, by contrast, operate in low-velocity regions where droplets settle downward due to gravity. Their design typically uses larger mesh openings and fewer layers, reducing pressure drop while still capturing liquid through extended residence time in the bottom zone. This makes them better suited for moderate liquid loading, where efficiency is balanced with minimal flow resistance.
Industrial Application Scenarios
The choice between top and bottom mounting depends on process conditions. Top-mounted demisters excel in high-velocity systems like distillation columns, gas absorbers, or fired heaters, where rapid vapor flow demands immediate droplet removal to protect downstream equipment. They are also ideal for applications requiring early vapor purification, such as in pharmaceutical manufacturing or food processing, where product contamination must be prevented. Bottom-mounted demisters, however, are preferred in low-velocity systems, such as evaporators, scrubbers, or storage tanks, where liquid accumulation is expected. Their lower profile fits vessels with limited vertical space, and their compatibility with liquid-rich environments makes them suitable for processes like wastewater treatment or chemical synthesis where droplet removal from the bottom liquid phase is critical.
FAQ:
Q1: What makes top-mounted demisters suitable for high-velocity gas streams?
A1: Their placement in the vapor-rich zone allows them to intercept droplets carried upward by high gas velocities, with tighter mesh packing enhancing capture efficiency.
Q2: How does bottom mounting affect maintenance requirements?
A2: Bottom-mounted demisters are often easier to access for cleaning, as their lower position facilitates liquid drainage and inspection without disassembly of upper vessel components.
Q3: Which configuration is better for systems with fluctuating liquid loads?
A3: Bottom-mounted demisters, due to their ability to handle accumulated liquid and adapt to varying liquid loads through gravity, are more suitable for systems with unstable liquid levels.
