Wire mesh demisters are critical components in chemical processing, responsible for removing entrained liquid droplets from gas streams to ensure product purity, prevent equipment damage, and maintain process efficiency. Accurate diameter calculation is essential for designing demisters that meet separation requirements while optimizing space and operational costs. This article explores the core principles and practical steps behind determining the correct diameter of a wire mesh demister.

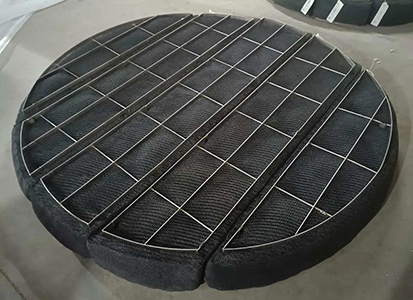

.jpg)
Key Parameters Influencing Wire Mesh Demister Diameter
Several factors directly impact the required diameter of a wire mesh demister. The primary variables include gas flow rate, which dictates the volume of fluid to be processed; operating pressure, affecting gas density and thus velocity;雾沫夹带量 (entrained liquid load), a measure of how much liquid is carried over with the gas;丝网材料特性 (wire mesh material properties), such as wire diameter, mesh count, and material type (e.g., stainless steel, plastic); and the desired separation efficiency (typically defined by the droplet size to be removed, often specified as 99.9% capture of droplets ≥5-10 μm). For instance, higher gas flow rates or greater entrained liquid loads necessitate a larger diameter to ensure adequate residence time for droplet separation.
Step-by-Step Diameter Calculation Methodology
The diameter calculation process involves a systematic approach to translate operational conditions into a practical demister size. First, determine the gas flow rate (Q) in cubic meters per hour (m³/h) and the operating gas density (ρ), which depends on pressure and temperature. Next, select an appropriate superficial gas velocity (v), a critical parameter that balances separation efficiency and pressure drop. Velocity ranges vary by application: for standard wire mesh (e.g., 316L stainless steel), typical velocities are 1-3 m/s, while higher velocities (up to 5 m/s) may be used for plastic meshes with smaller wire diameters to minimize pressure drop. Using the formula Q = A × v (where A is the cross-sectional area of the demister), solve for A = Q / v. The demister diameter (D) is then derived from the area: D = √(4A/π), ensuring the calculated diameter is rounded up to the nearest standard size for practical implementation.
Practical Considerations and Optimization Tips
In real-world applications, several adjustments enhance the reliability of the calculated diameter. Always include a safety margin (typically 10-20%) to account for unexpected flow fluctuations, material degradation, or miscalculations. For corrosive environments, select mesh materials with appropriate resistance (e.g., titanium for strong acids) to avoid premature failure, which could necessitate larger demisters. Additionally, optimize the demister design by balancing mesh count and wire diameter: finer meshes (higher mesh count) improve separation efficiency but increase pressure drop, potentially requiring a larger diameter. Conversely, coarser meshes reduce pressure drop but may lower efficiency, so trade-offs must align with process requirements.
FAQ:
Q1: What is the typical gas velocity range for wire mesh demister design?
A1: Typical gas velocities range from 1-5 m/s, depending on mesh material and droplet size. For metal meshes, 1-3 m/s; for plastic meshes, 1-2 m/s to ensure stable separation.
Q2: How does mesh material affect the required diameter?
A2: Materials with higher strength (e.g., stainless steel) allow higher gas velocities, reducing the required diameter. Lower-strength materials (e.g., plastic) require lower velocities, increasing the diameter.
Q3: Why is a safety margin important in diameter calculation?
A3: A safety margin (10-20%) prevents operational issues like insufficient separation when actual flow or conditions exceed initial calculations, ensuring consistent performance.
