Calculation of Wire Mesh Layer Thickness in Wire Mesh Demister

Wire mesh demisters are critical components in chemical, petroleum, and gas processing systems, designed to remove entrained liquid droplets from gas streams. A well-calculated layer thickness ensures efficient droplet separation while minimizing pressure drop, directly impacting system performance and energy consumption. This article explores the fundamentals, influencing factors, and practical methods for determining wire mesh demister layer thickness, providing engineers with actionable insights for optimal design.

1. Fundamental Principles of Wire Mesh Layer Thickness

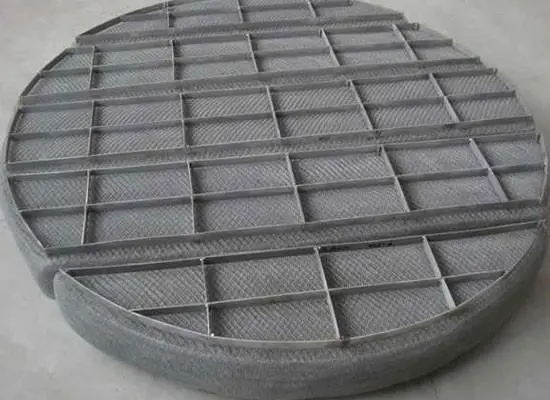

The layer thickness of a wire mesh demister refers to the total vertical height of stacked wire mesh layers, typically composed of multiple layers of woven wire (e.g., stainless steel, nickel alloys) with specific mesh density. Its primary role is to create a tortuous flow path for gas, allowing liquid droplets to collide with wire surfaces, adhere, and drain back to the liquid phase. A minimum thickness is required to ensure complete droplet capture, while an excessive thickness would unnecessarily increase gas flow resistance. Balancing these two aspects—separation efficiency and pressure drop—is the core objective of thickness calculation.

2. Key Factors Influencing Thickness Calculation

Several interrelated factors determine the appropriate thickness of a wire mesh demister layer. First, wire mesh properties such as mesh count (number of meshes per inch), wire diameter, and material directly affect separation capability. Higher mesh counts (finer meshes) enhance separation of small droplets but may require thicker layers to accommodate the increased tortuosity of flow paths. Second, operating conditions including gas velocity, liquid loading, droplet diameter, and system pressure/temperature play vital roles. Higher gas velocities increase the kinetic energy of droplets, demanding thicker layers to prevent bypass; smaller droplets (e.g., submicron size) also necessitate greater thickness due to their reduced inertia during collision.

3. Practical Calculation Methods

Engineers use a combination of empirical correlations, experimental data, and numerical models to calculate optimal layer thickness:

- Empirical Correlations: Traditional methods like the Lapple equation or Onda et al. model relate separation efficiency to geometric parameters (e.g., layer thickness, mesh count) and operating conditions. For example, the Onda model estimates efficiency (E) as E = 1 - exp(-k·u^a·d_p^b·t^c), where u is gas velocity, d_p is droplet diameter, and t is layer thickness, allowing reverse calculation of t for target E.

- Experimental Validation: Bench-scale or pilot-plant testing is often conducted with varying thicknesses to measure pressure drop and separation efficiency, establishing a performance chart for specific service conditions. This is particularly useful for new or custom wire mesh configurations.

- CFD Simulation: Computational Fluid Dynamics (CFD) models simulate fluid flow and droplet trajectories, enabling detailed analysis of how thickness affects flow patterns, residence time, and collection efficiency. This method is increasingly adopted for complex systems with non-uniform operating conditions.

FAQ:

Q1: What is the minimum layer thickness required for typical wire mesh demister applications?

A1: For standard gas velocities (0.3-1.5 m/s) and droplet sizes (>10 μm), a minimum thickness of 5-10 mm is generally recommended. Thicker layers (15-20 mm) are needed for fine droplet separation (<5 μm) or high-velocity services.

Q2: How does increased layer thickness impact pressure drop?

A2: Thicker layers increase flow resistance, leading to higher pressure drop. As a rule of thumb, each additional 1 mm of thickness may increase pressure drop by 0.1-0.3 kPa, depending on mesh structure and gas velocity. Most systems tolerate a maximum pressure drop of 1-2 kPa.

Q3: Can layer thickness be adjusted for different gas-liquid ratios?

A3: Yes. Higher liquid loading (more droplets per unit gas flow) requires thicker layers to ensure complete capture, while lower liquid loads may allow thinner layers without sacrificing efficiency. Adjustments should be validated through efficiency testing.
